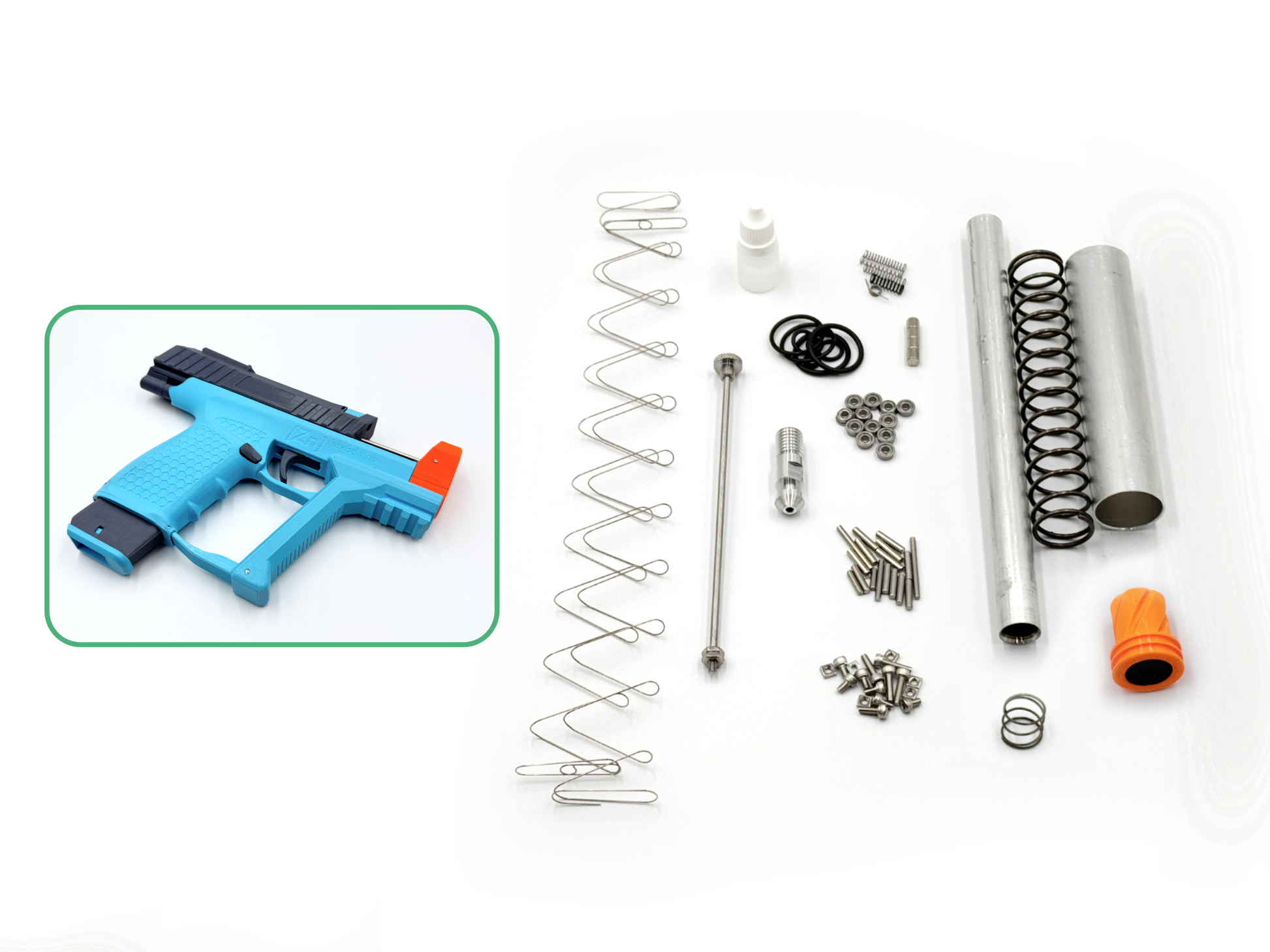

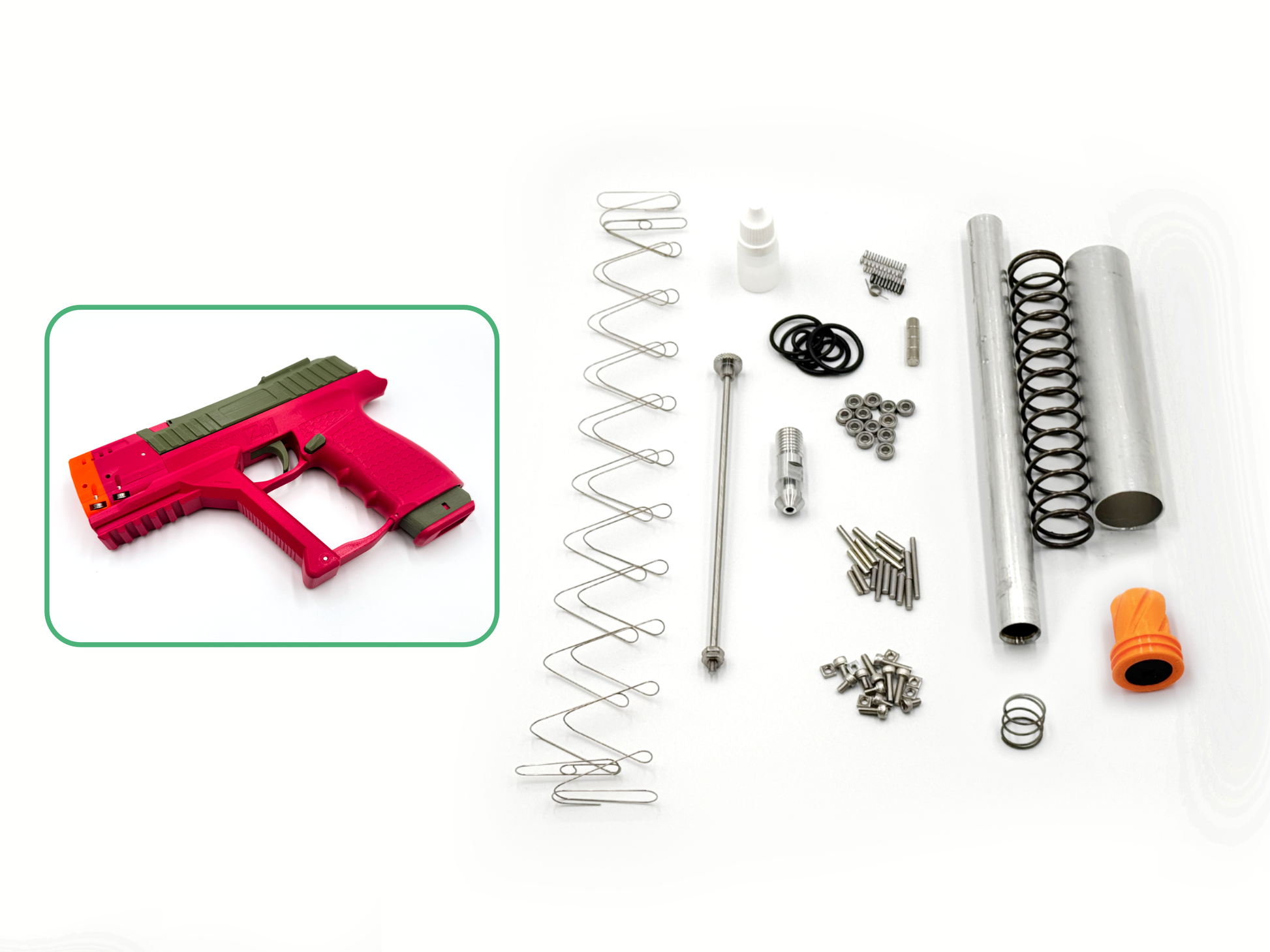

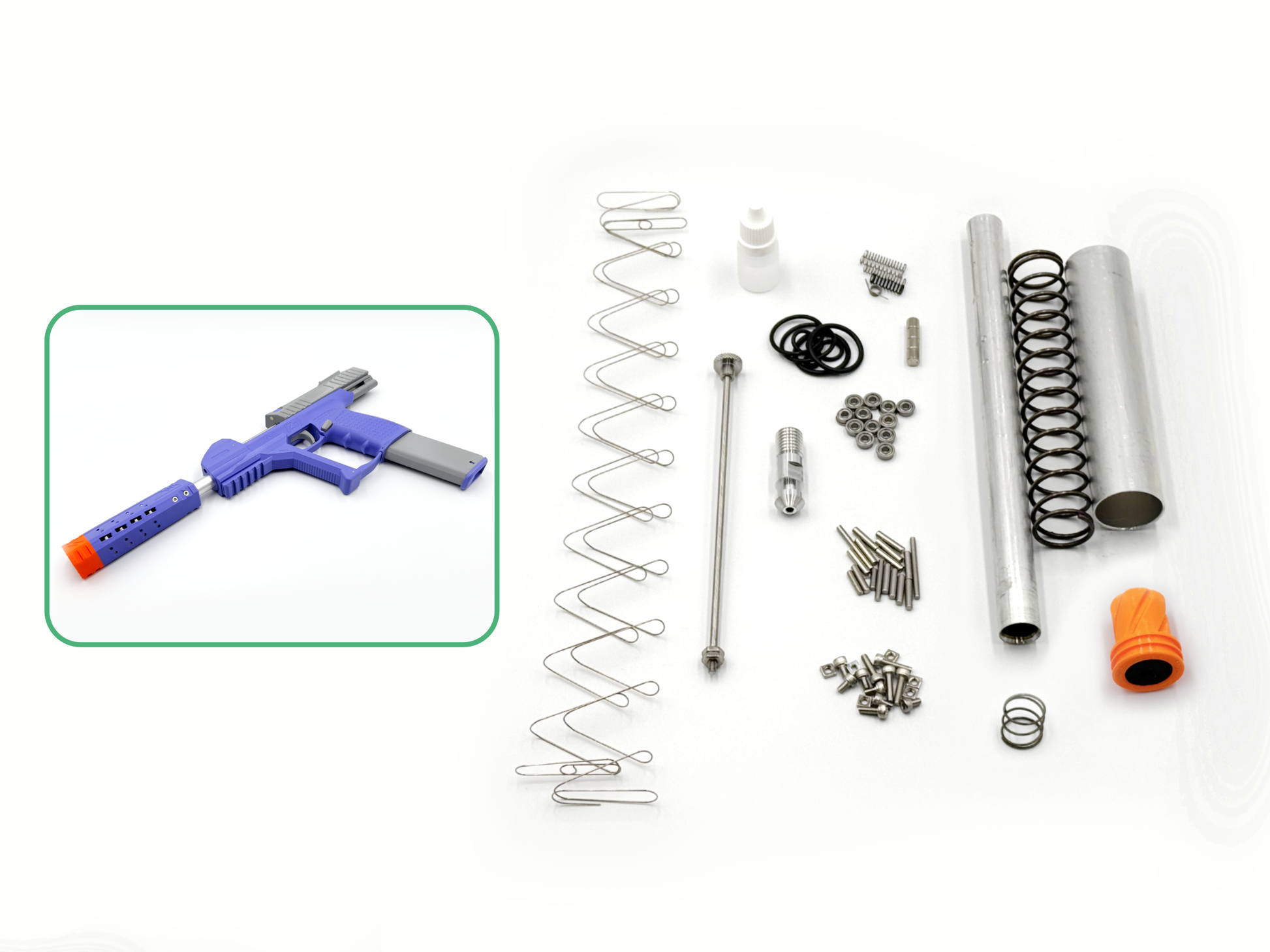

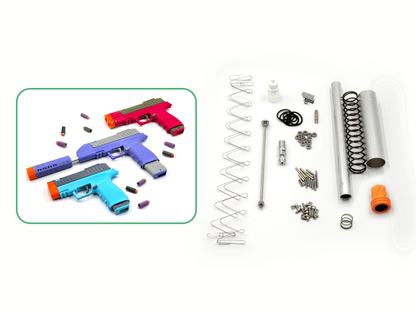

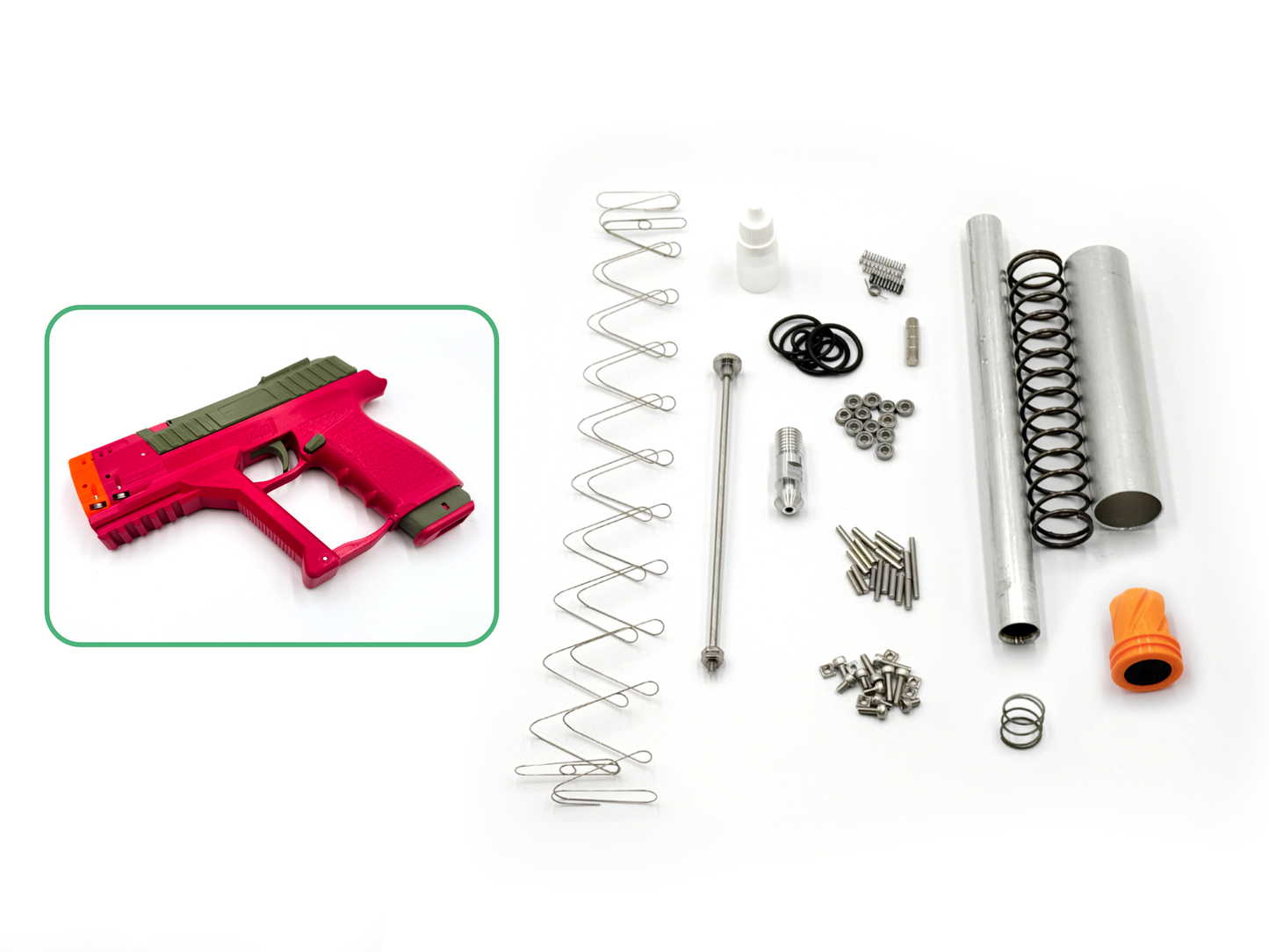

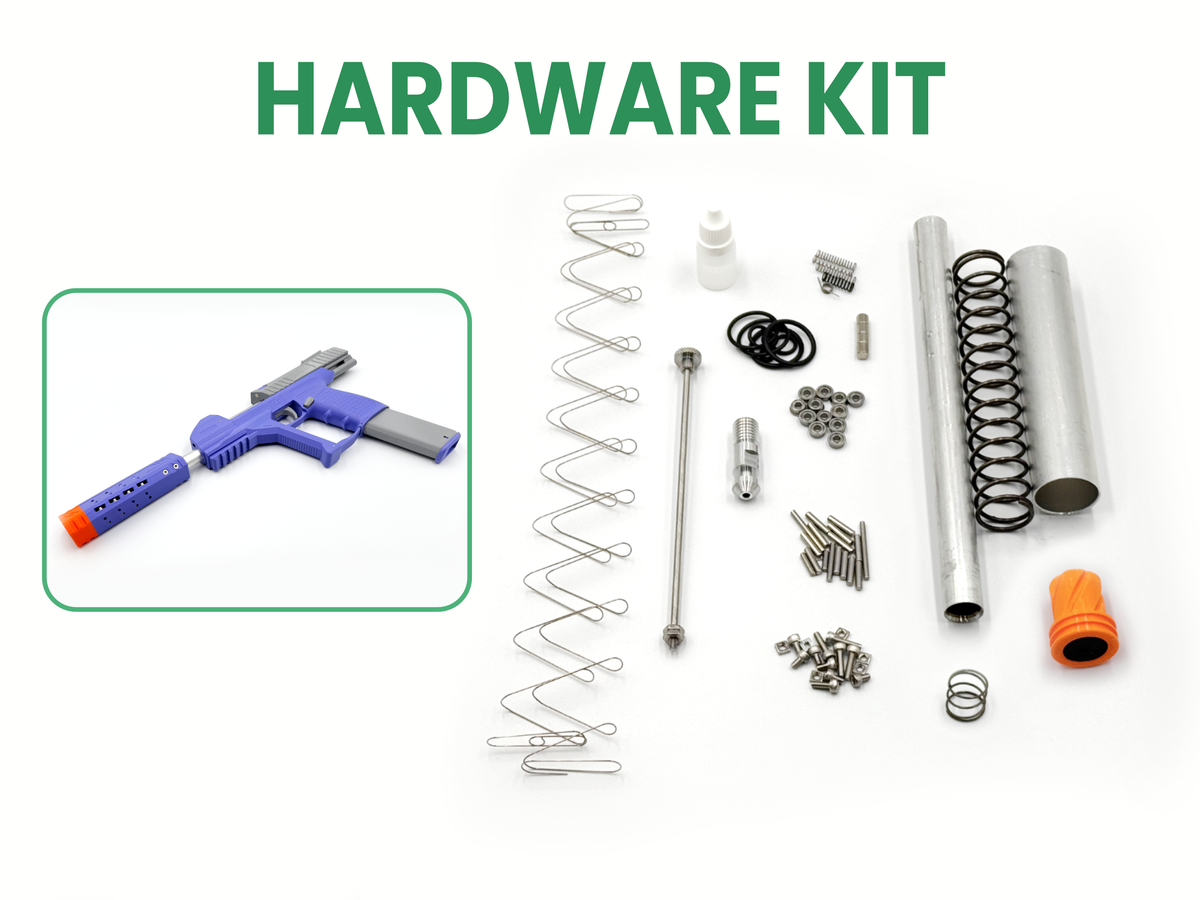

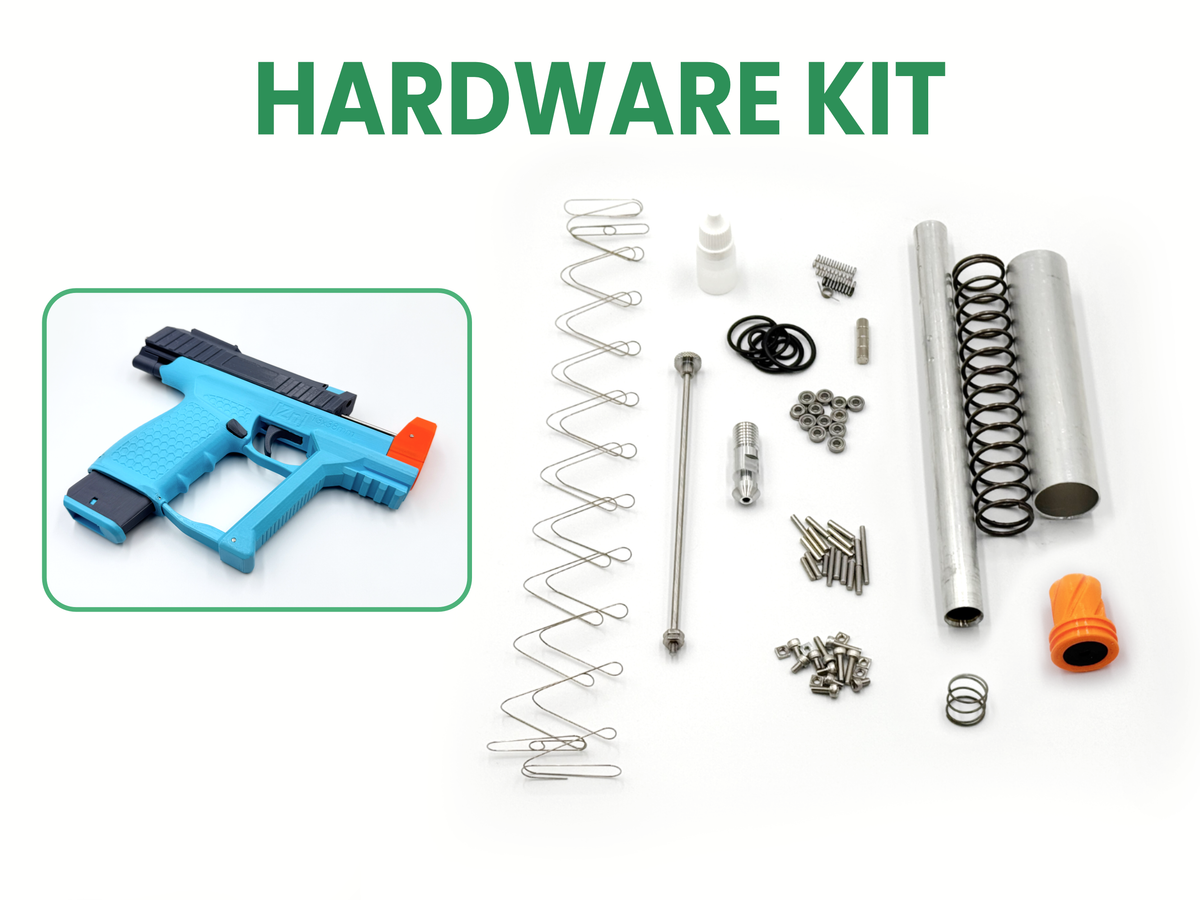

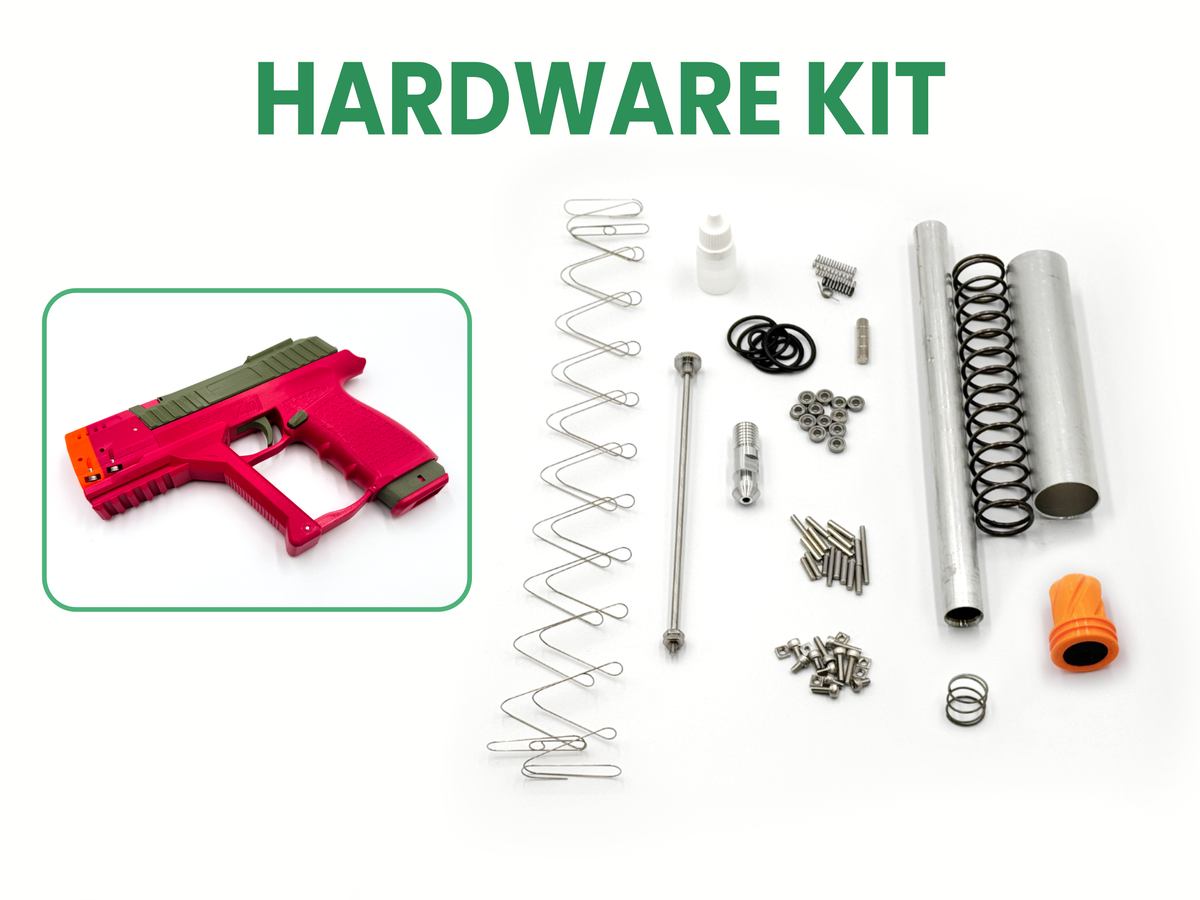

Znc Aus Dart Blaster Hardware Kit

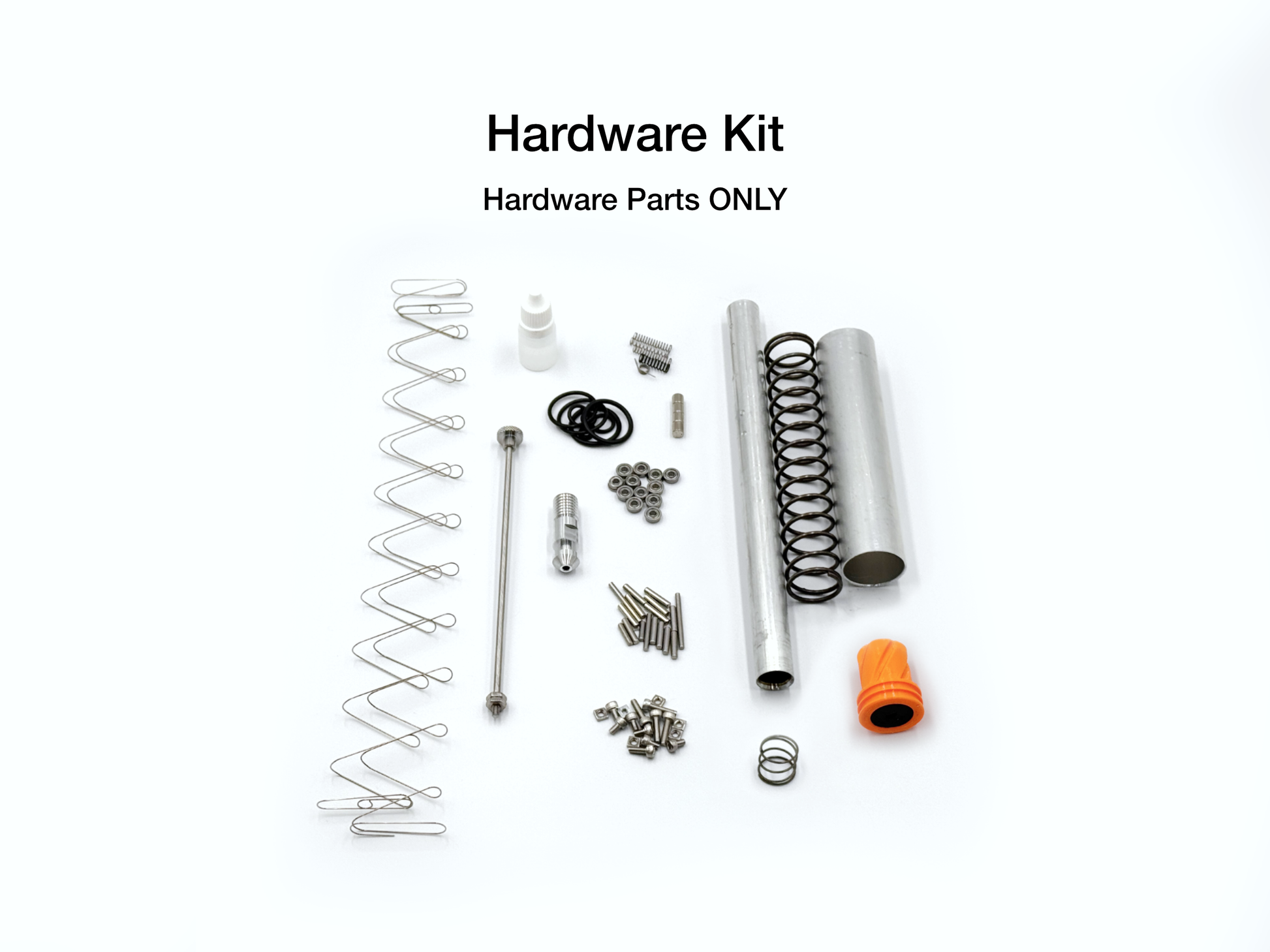

Hardware components only - no printed parts. The only printed part included is the plunger - done in PETG with a TPU face to protect against ware.

Print files can be found here

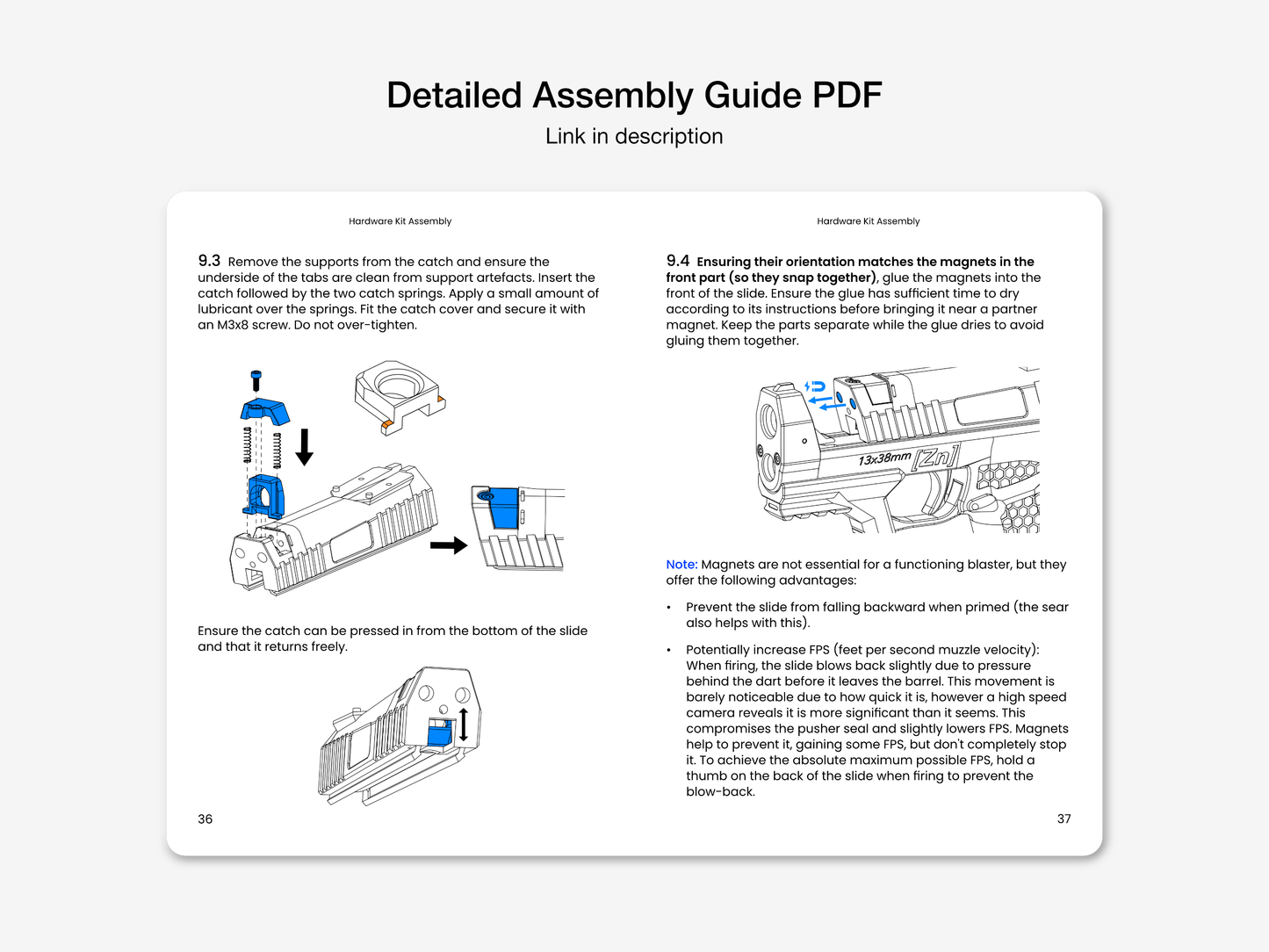

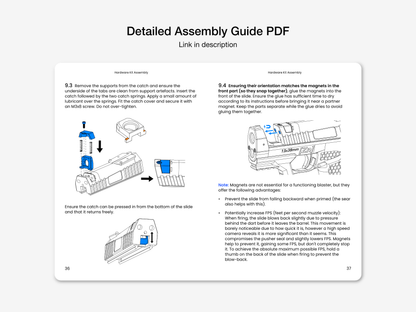

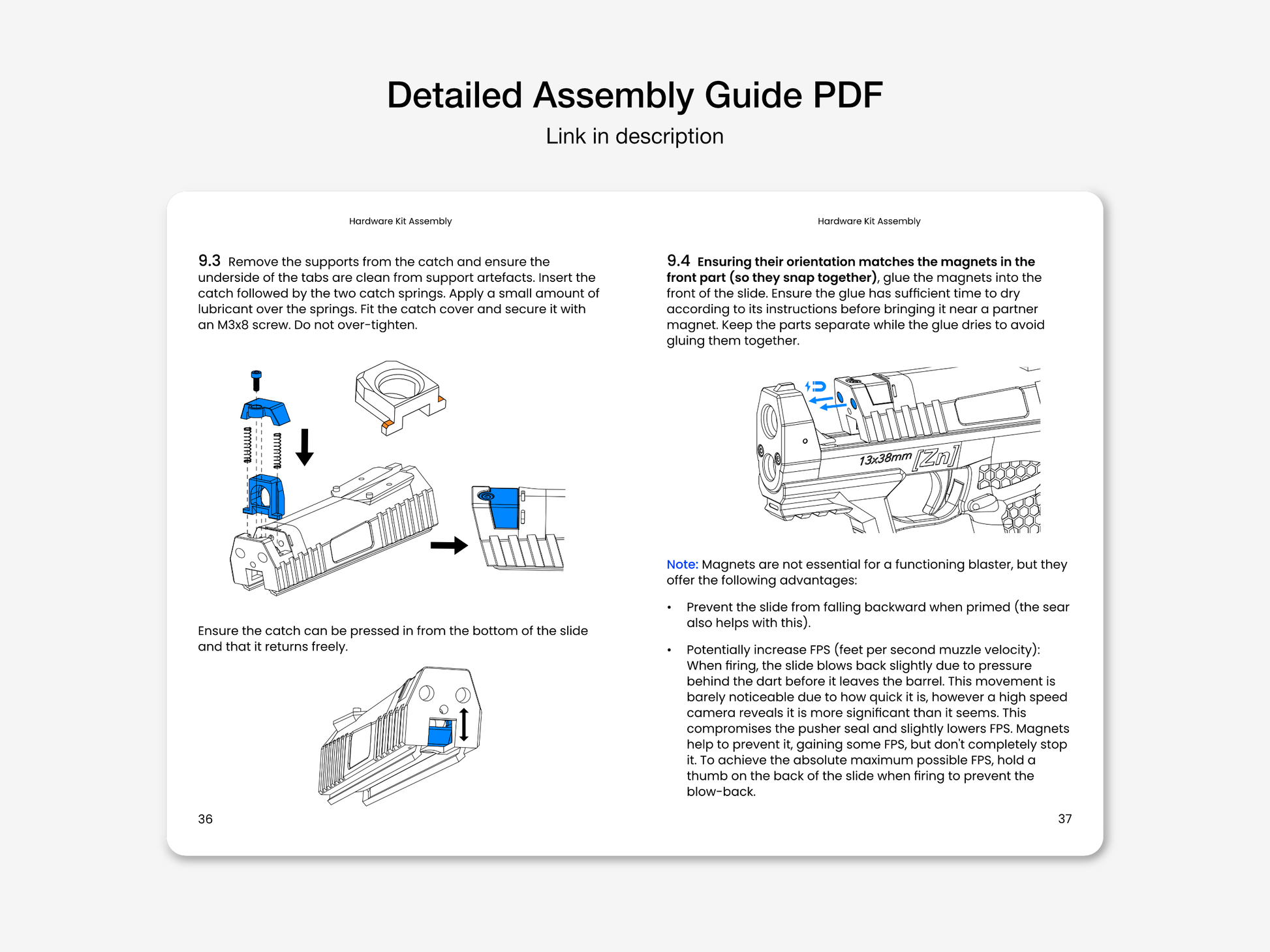

Assembly guide can be found here

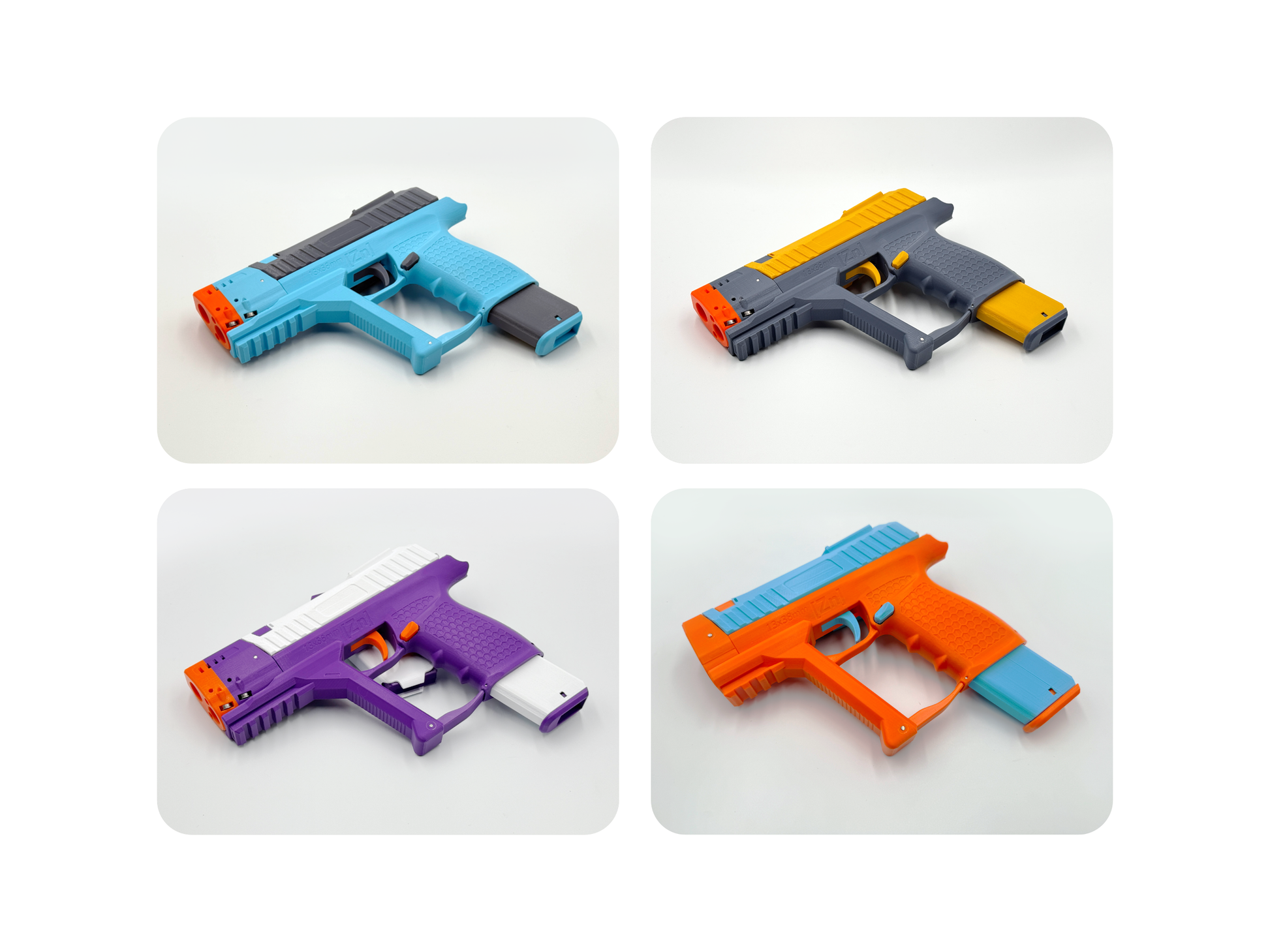

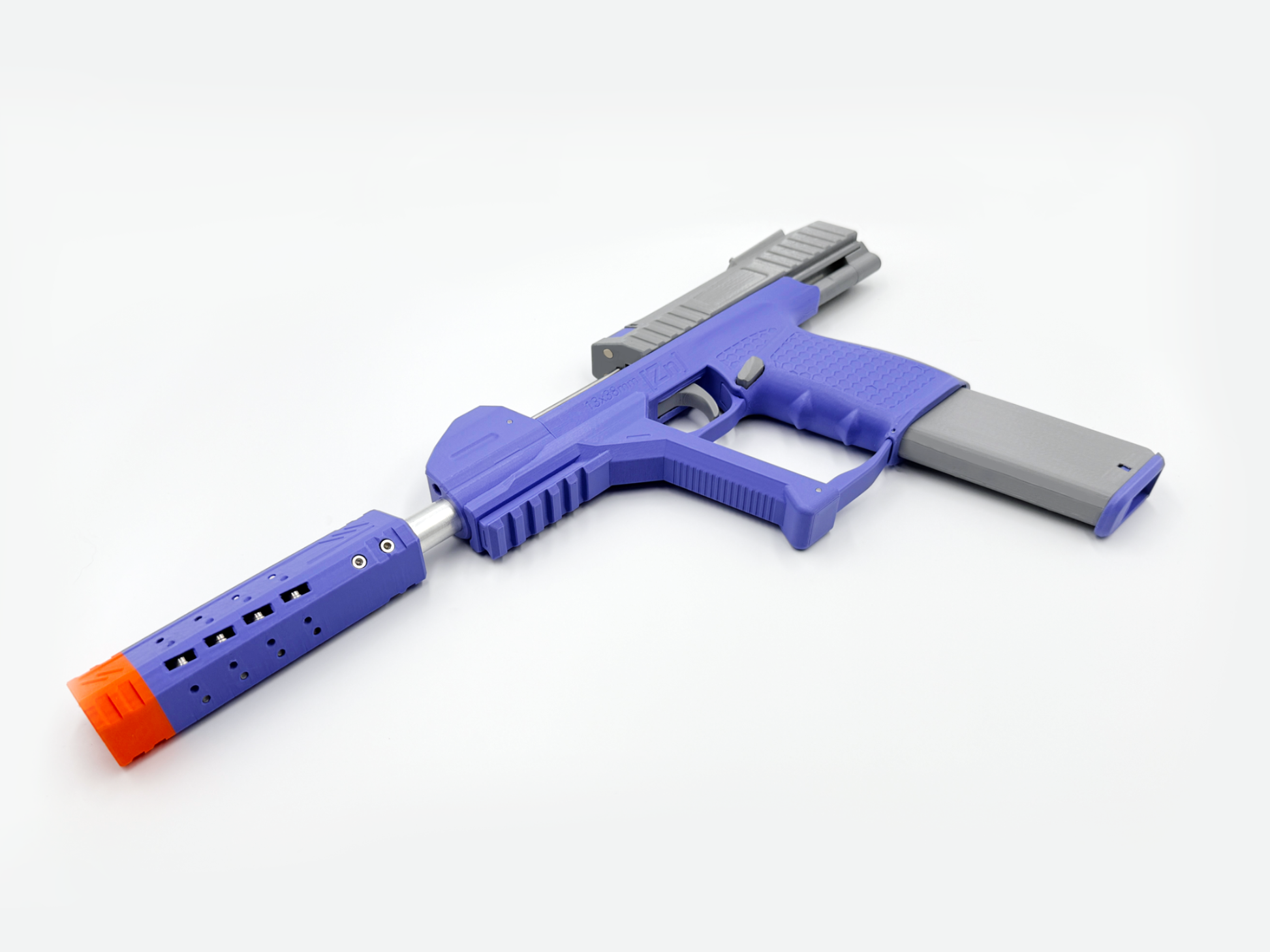

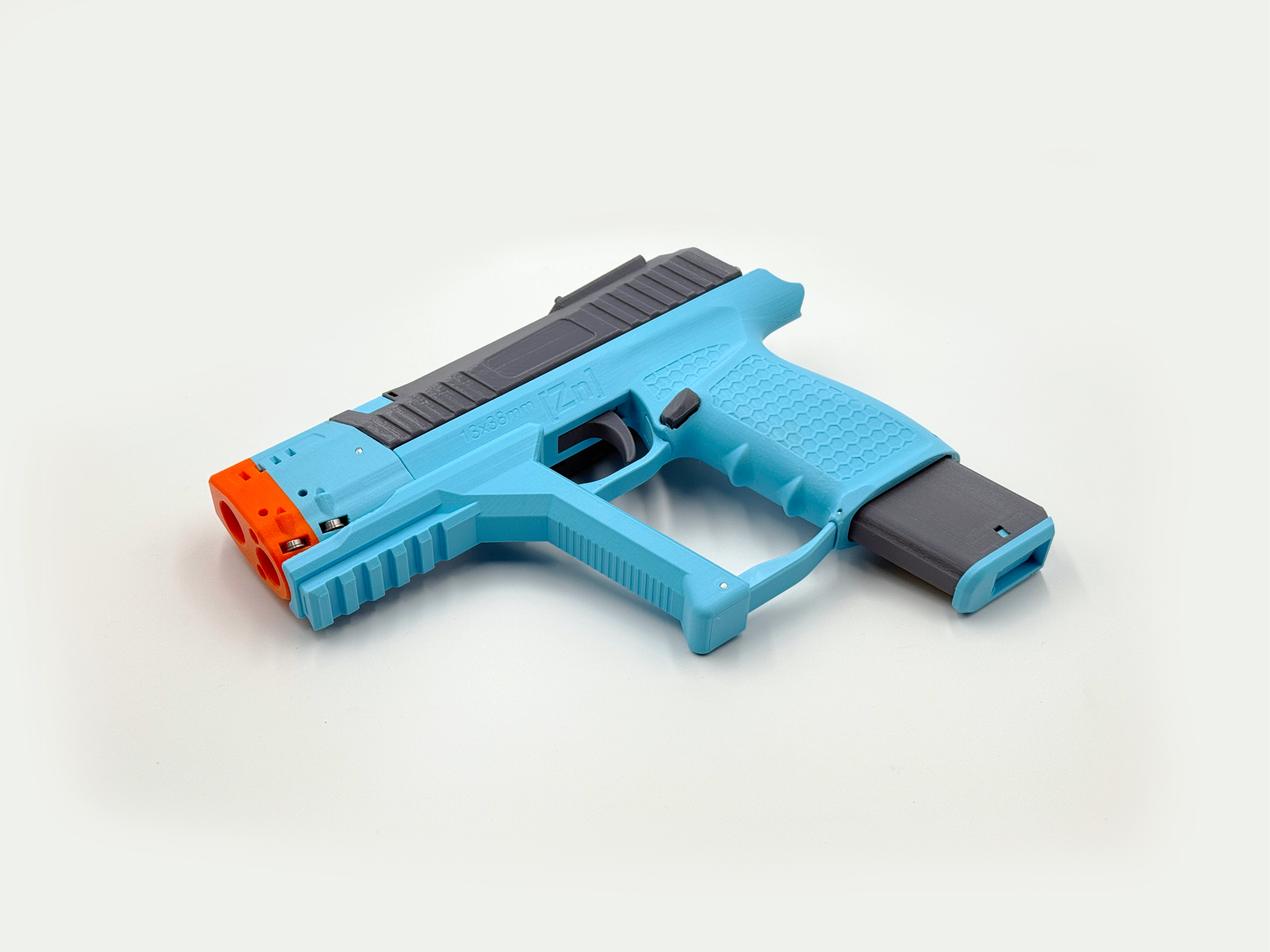

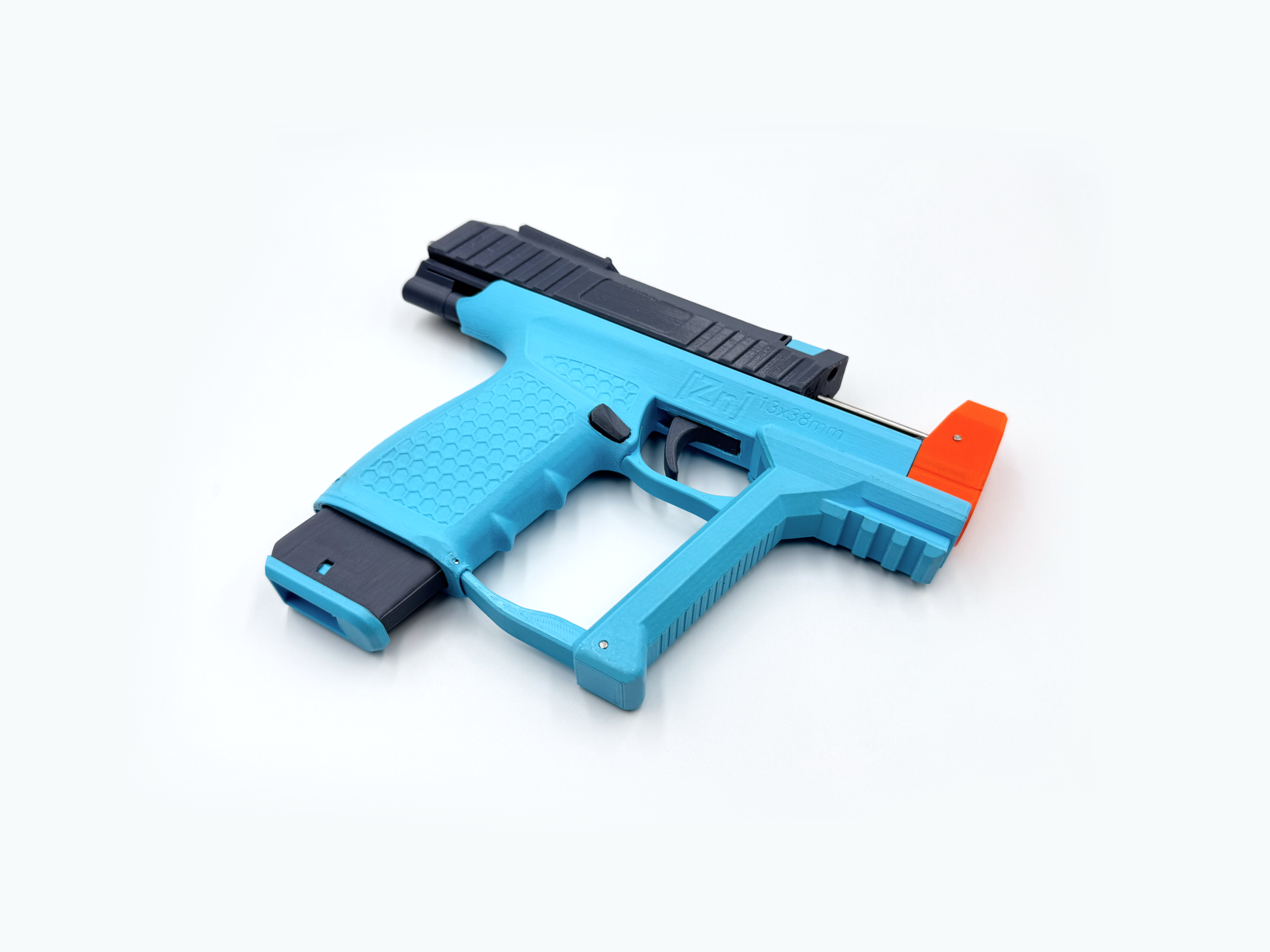

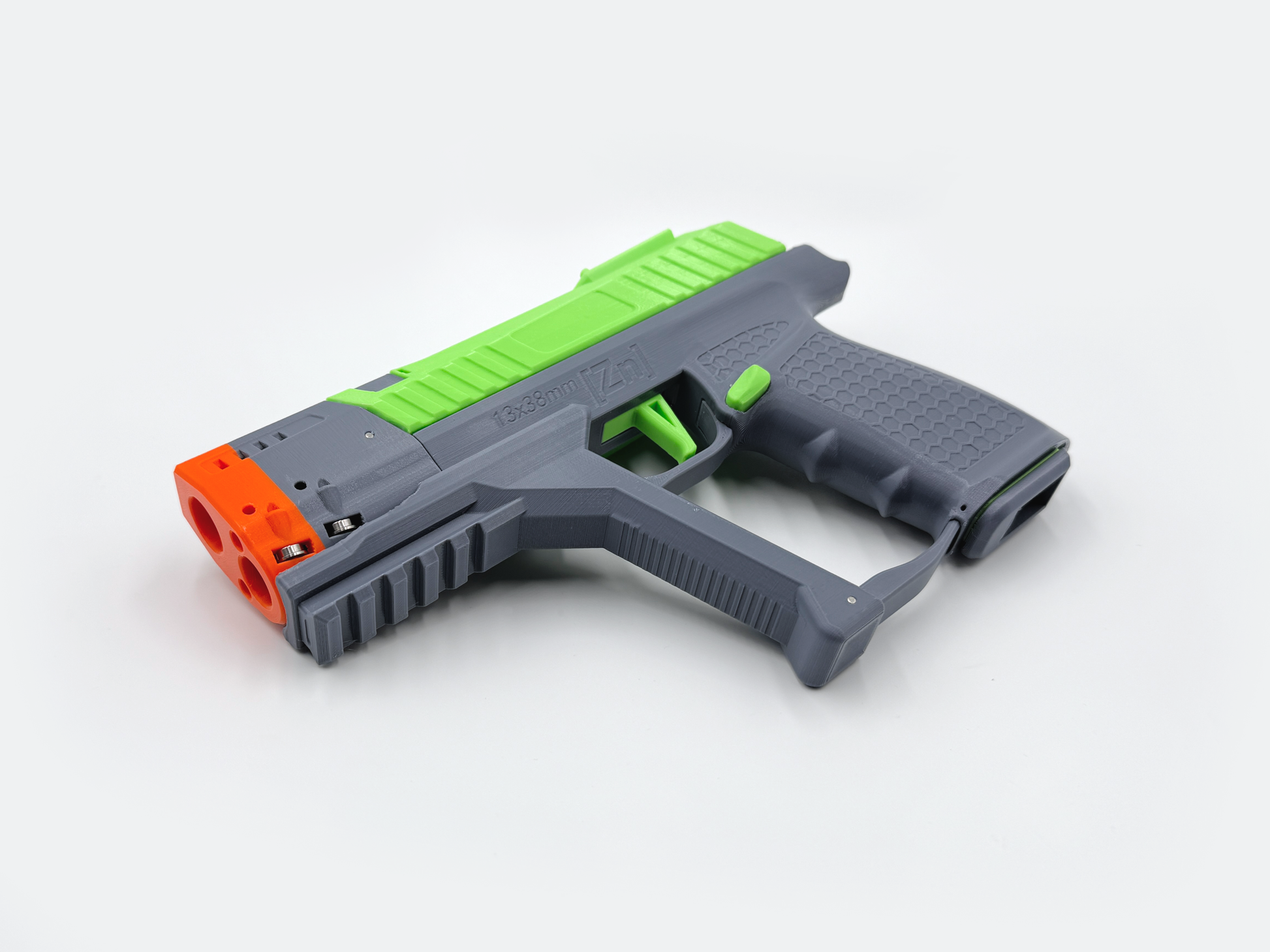

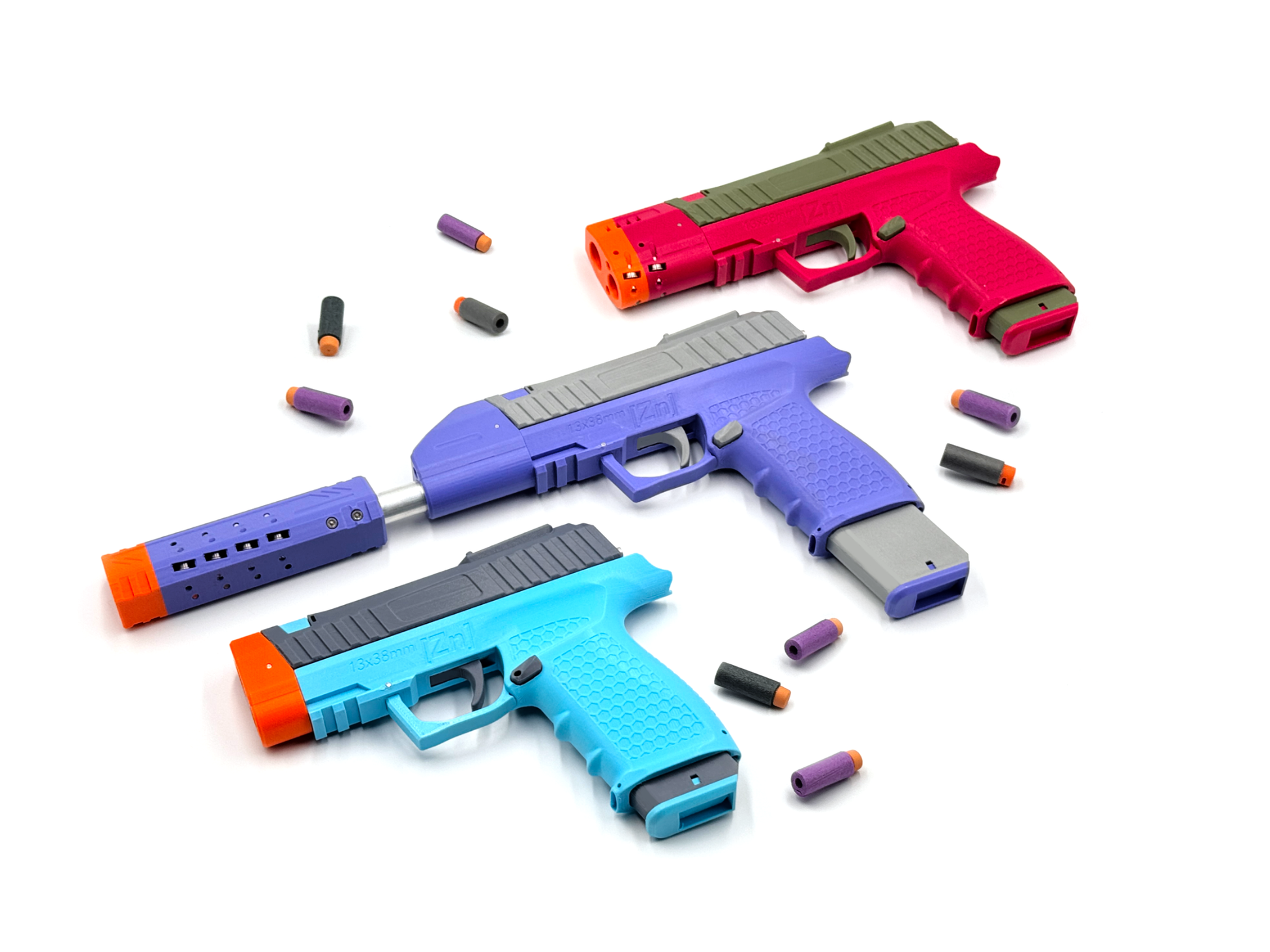

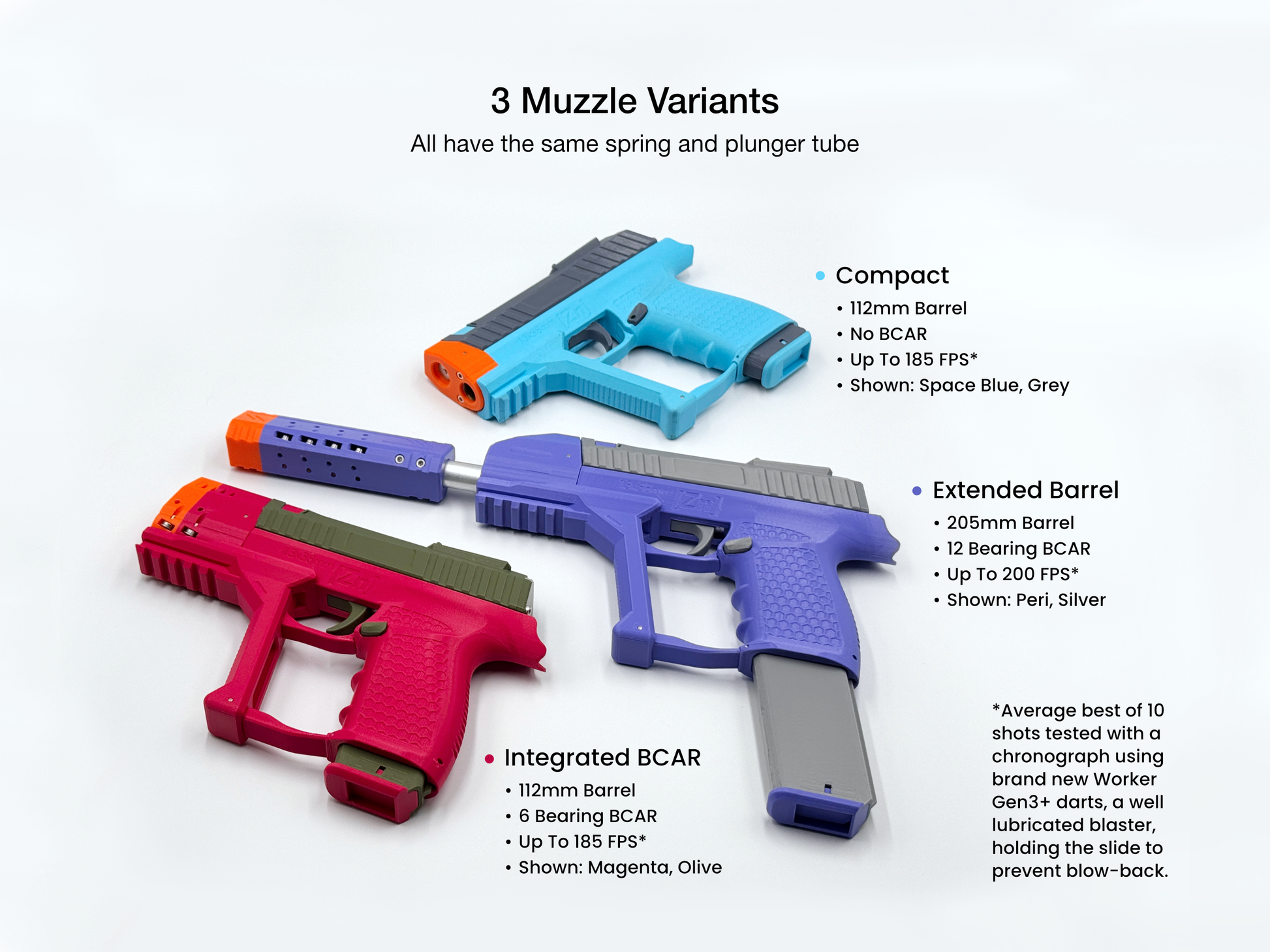

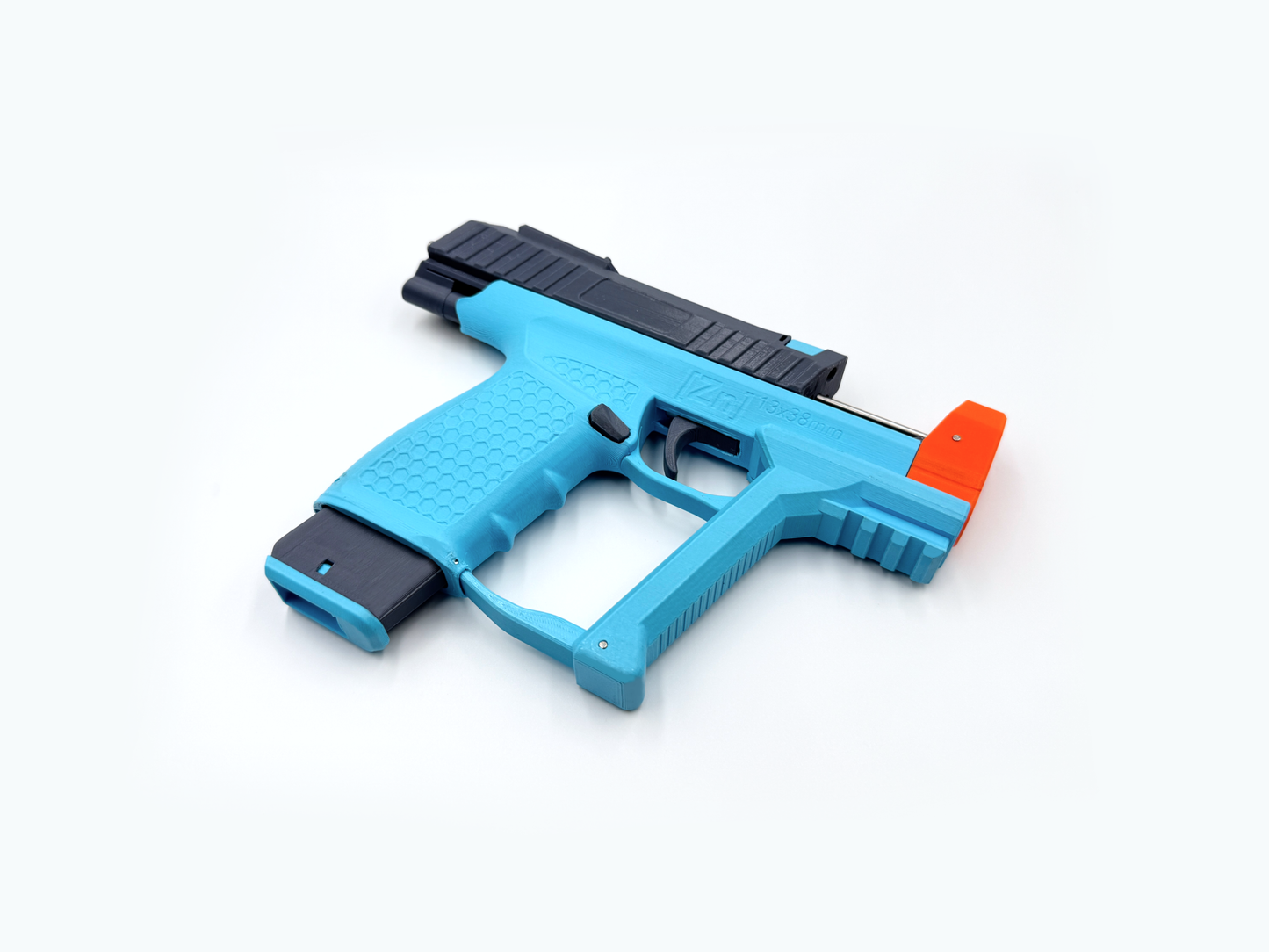

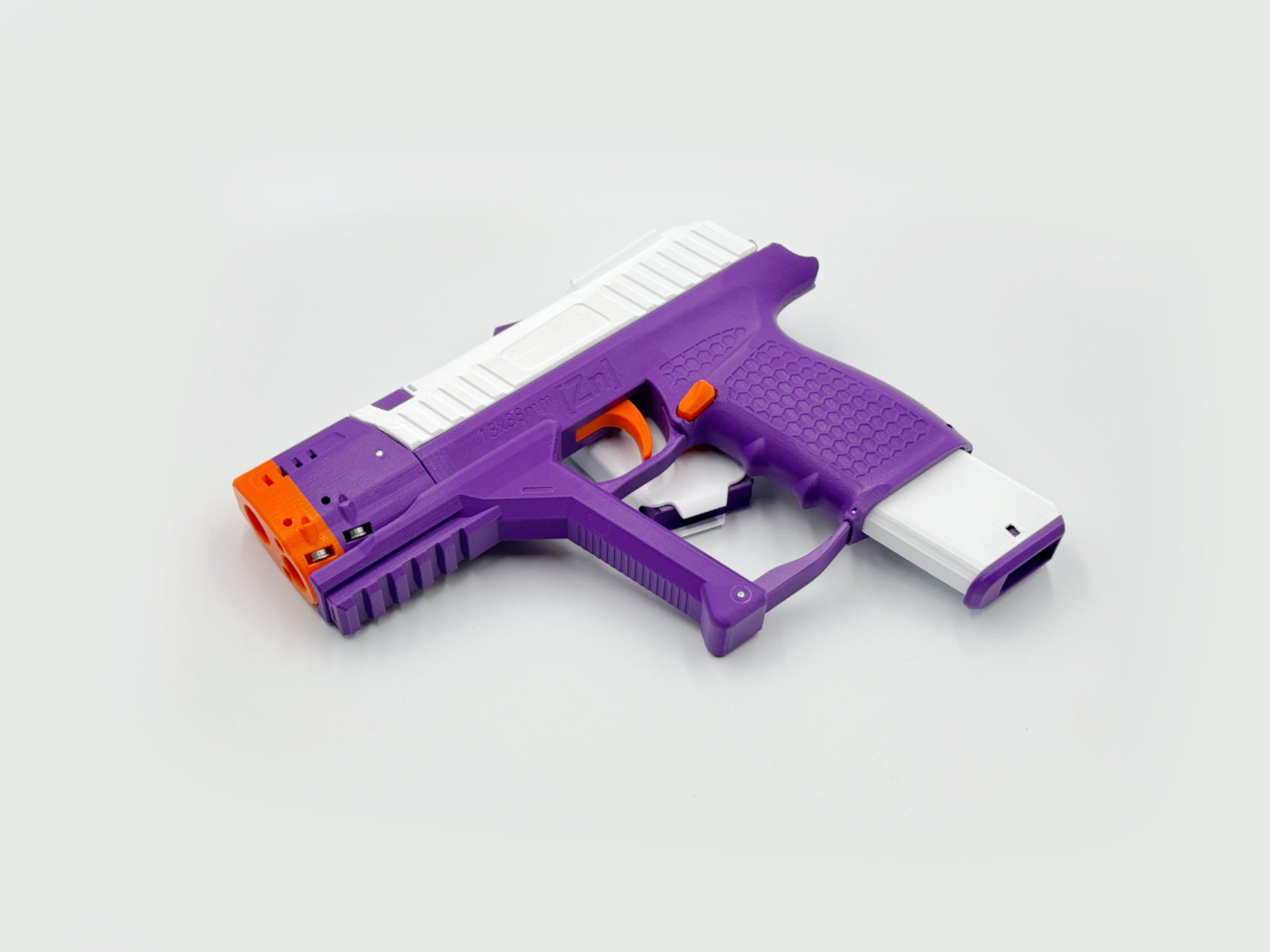

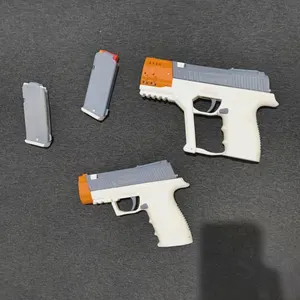

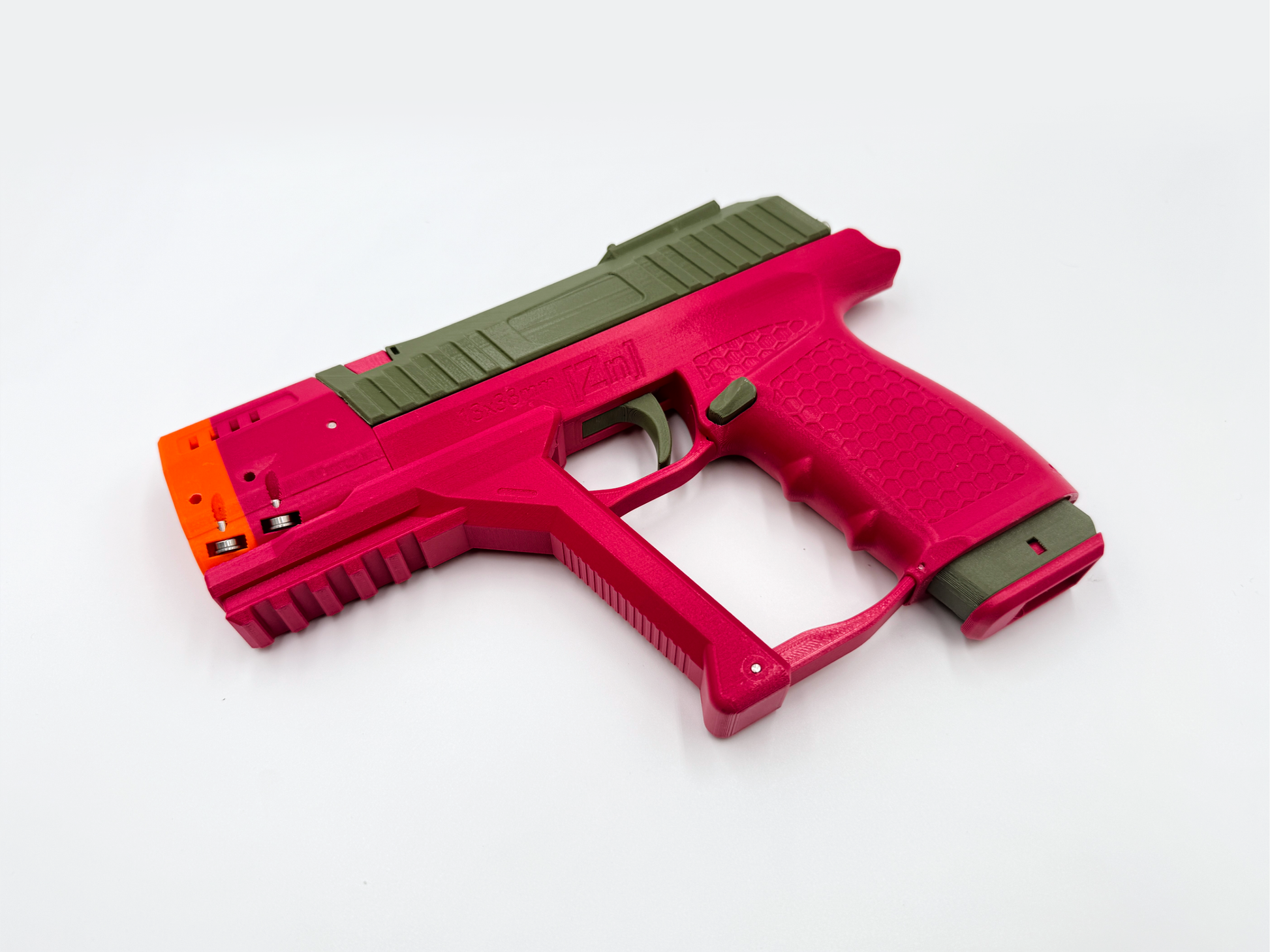

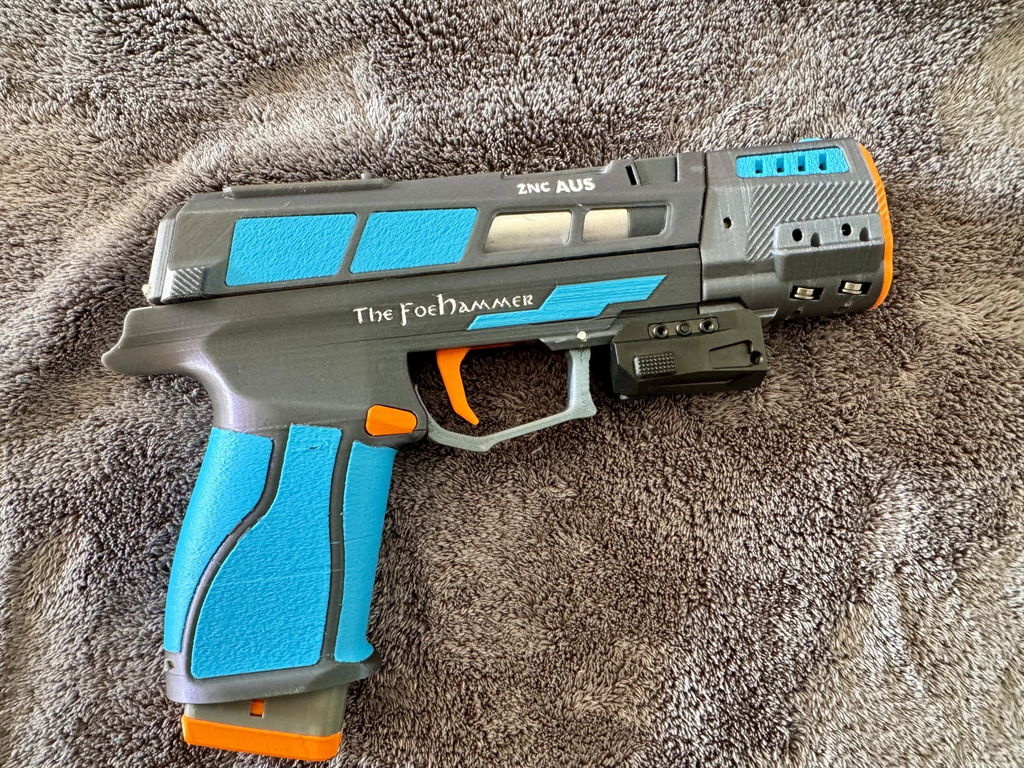

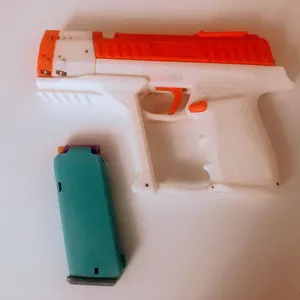

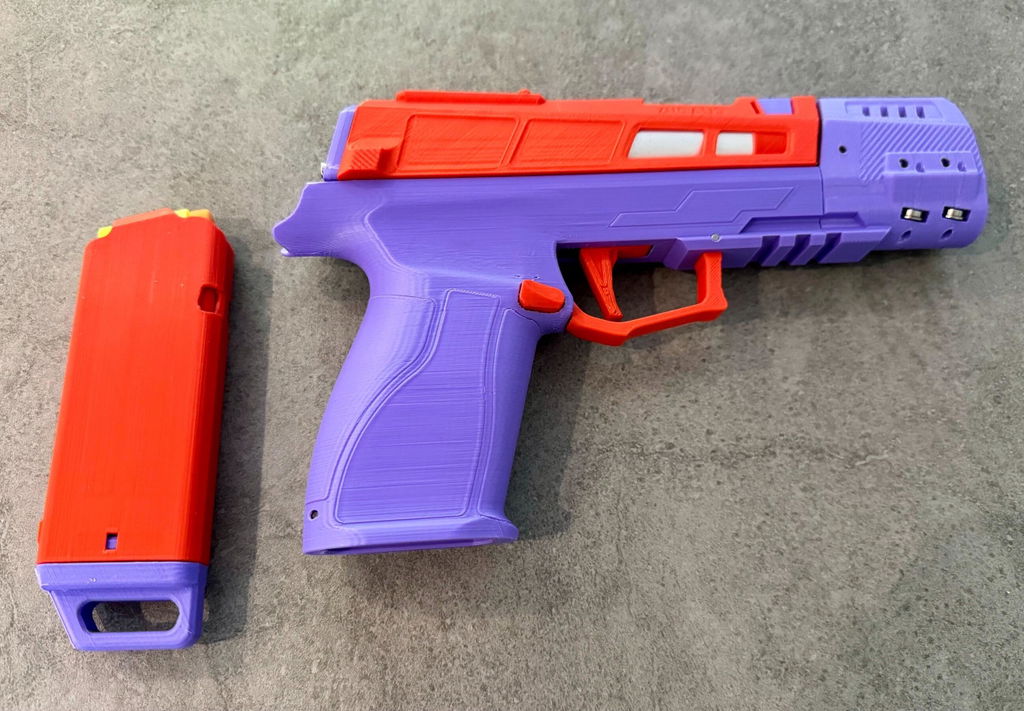

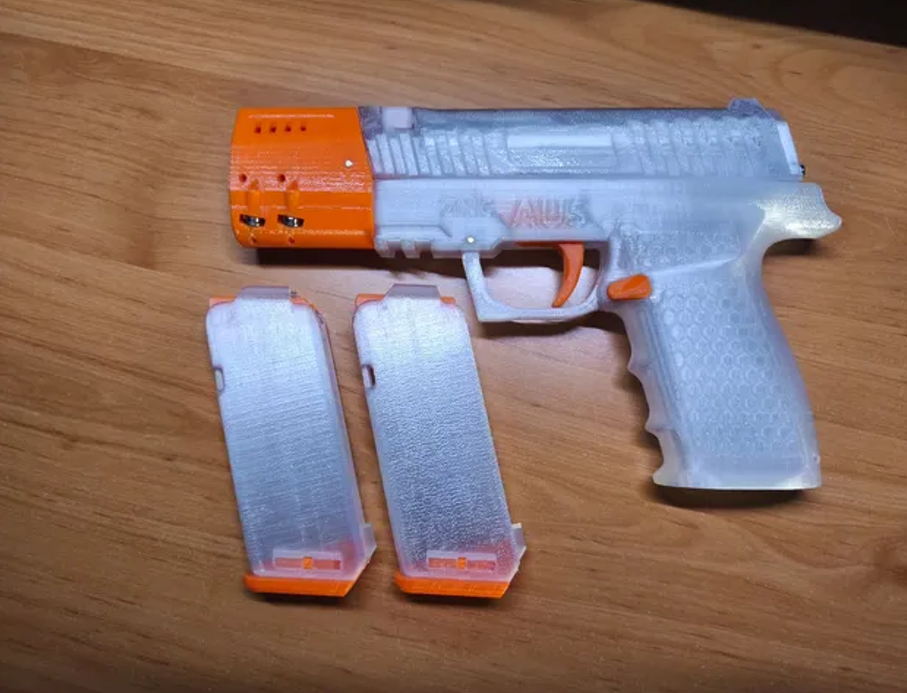

The Znc Aus is a high-powered, mag fed (7-13 dart capacity) springer pistol blaster capable of up to 200FPS muzzle velocity. It is available in 3 variants with different muzzle configurations: Compact, Integrated BCAR, or Extended Barrel with External BCAR (200FPS was achieved with the Extended Barrel  with External BCAR variant).

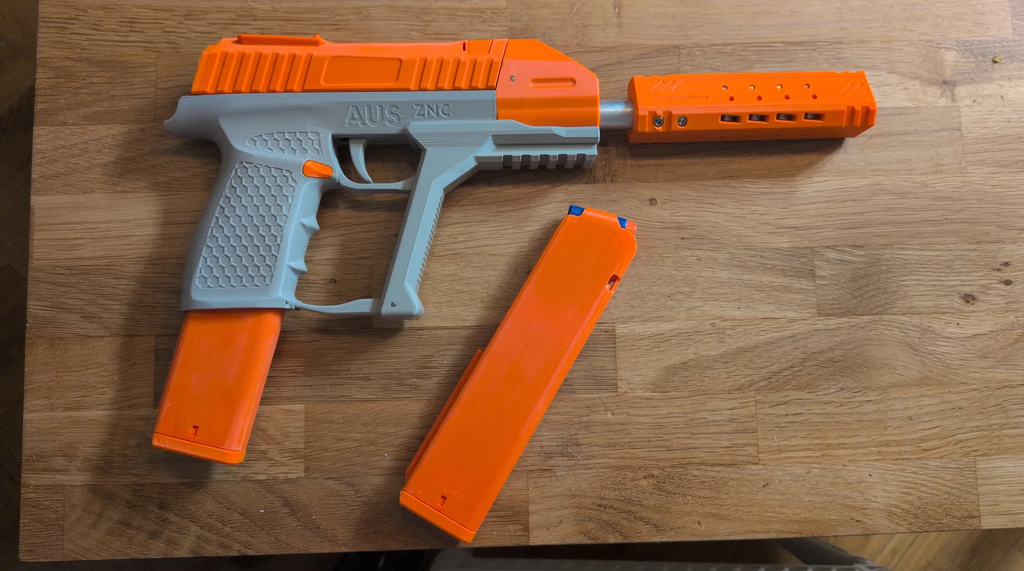

The Znc Aus is based on the Znc by Misplaced Moose, and is modified and sold with his permission. Note: Like the Znc, the Znc Aus is an unofficial descendant of the Zinc 2.0 blaster. Frontline Foam in the USA is the only approved distributor for the official Zinc 2.0. The primary objective of the Znc Aus, hence the name, is to make the blaster more accessible for Australians and nearby oceanic countries by using more accessible hardware and by avoiding the excessive shipping costs from the US. Other standout changes and additions include an optional handguard and a variant with a longer barrel and an external 'suppressor' BCAR.

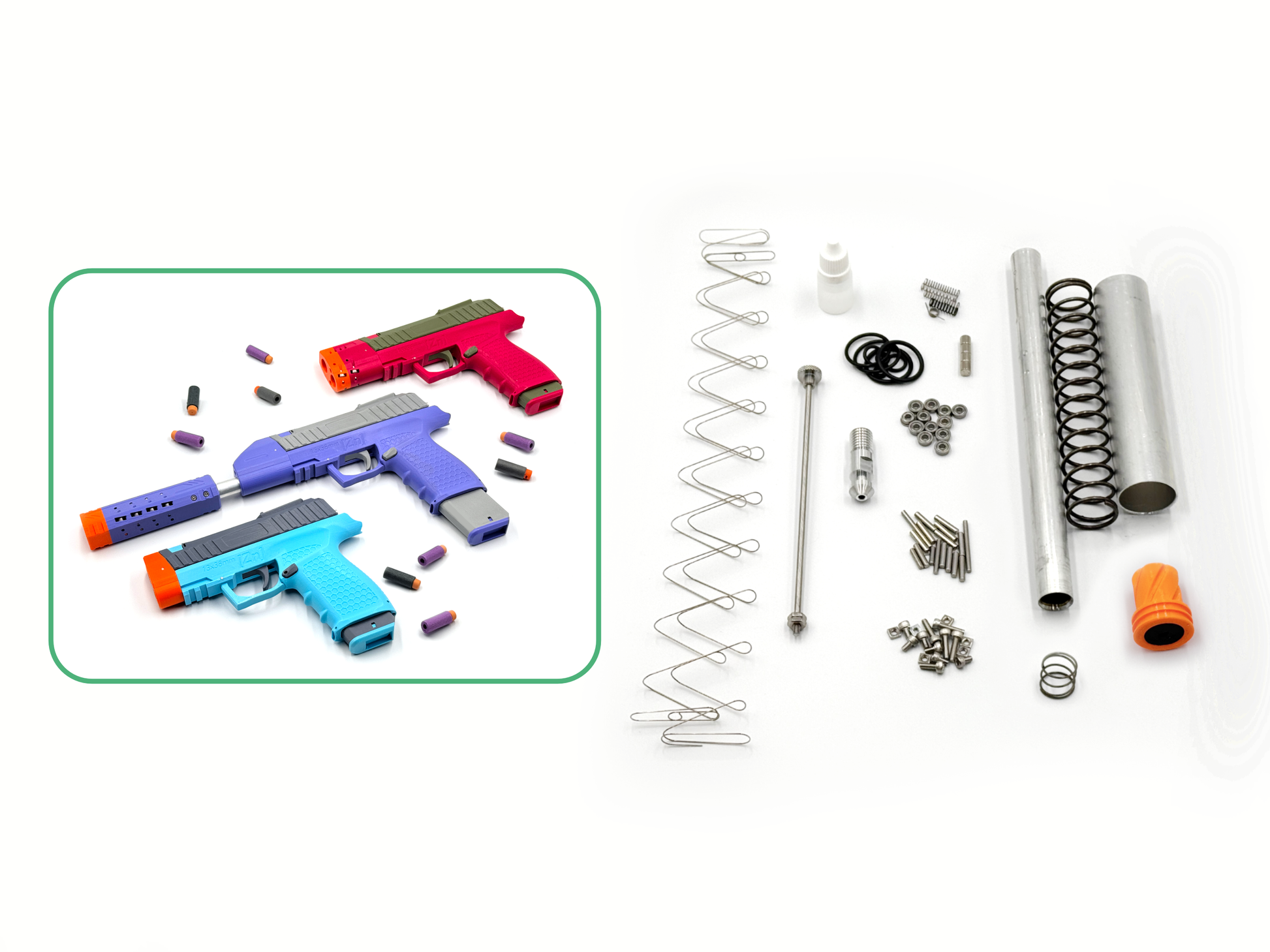

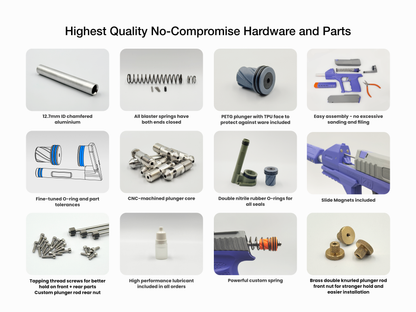

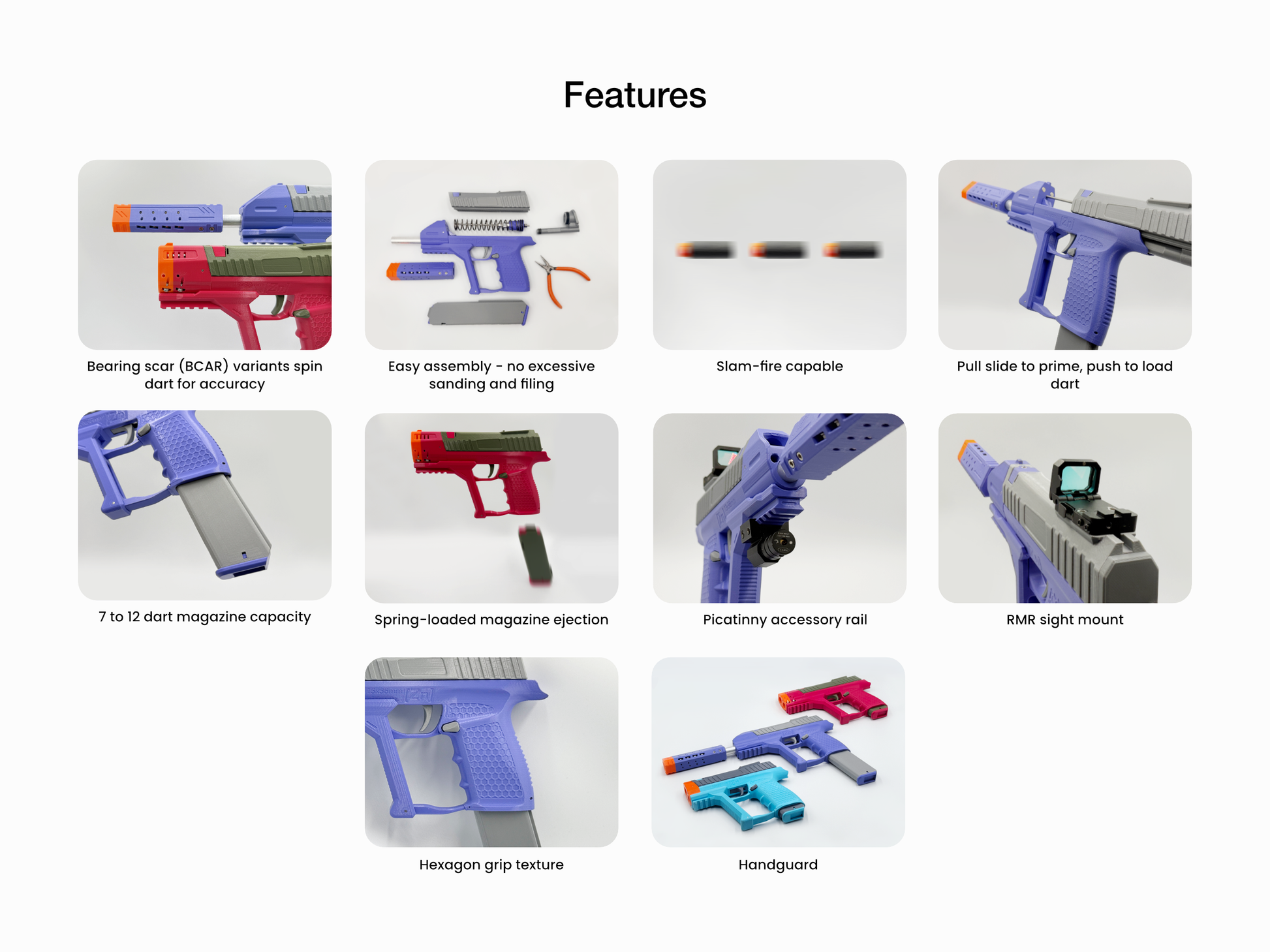

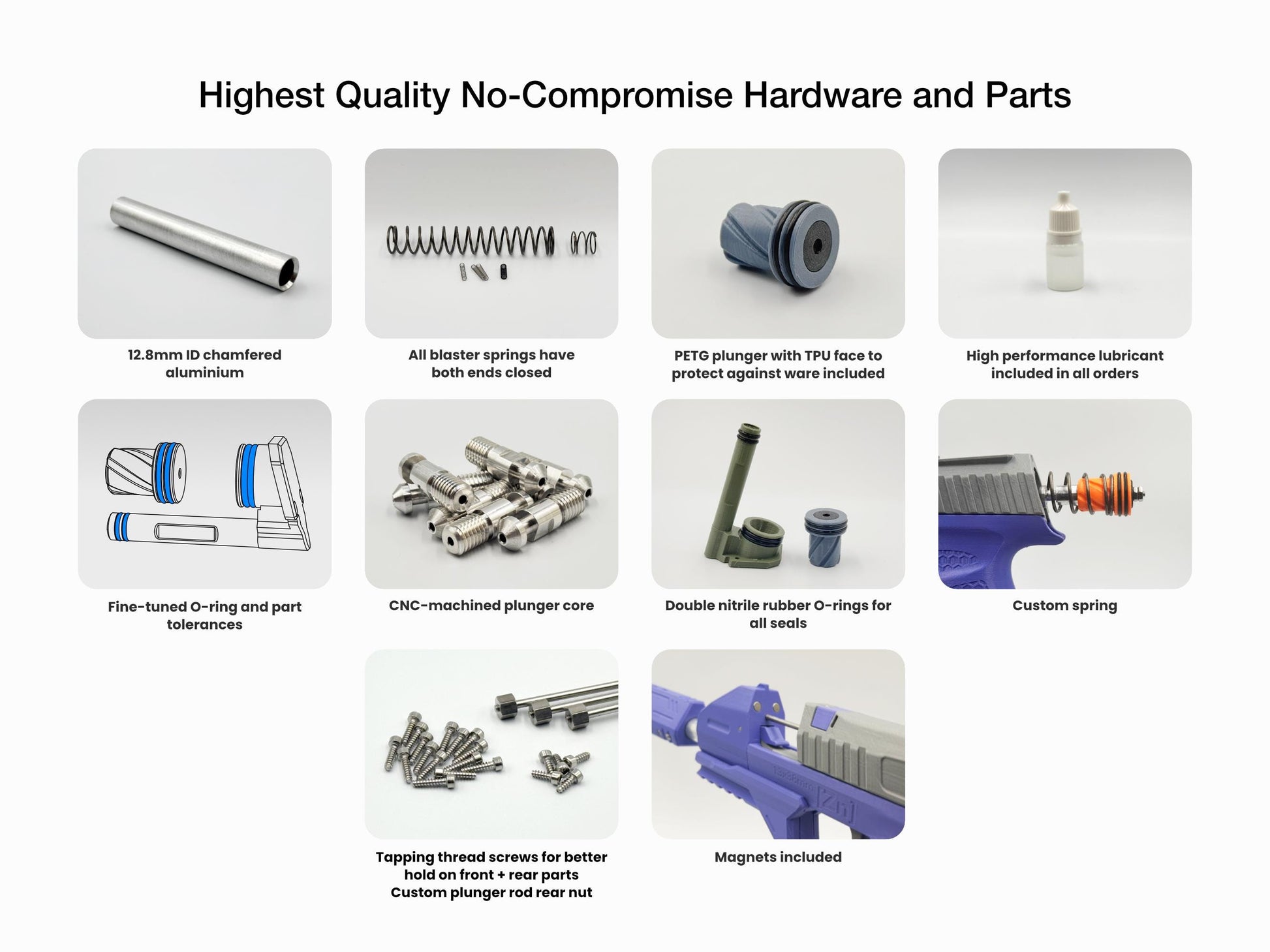

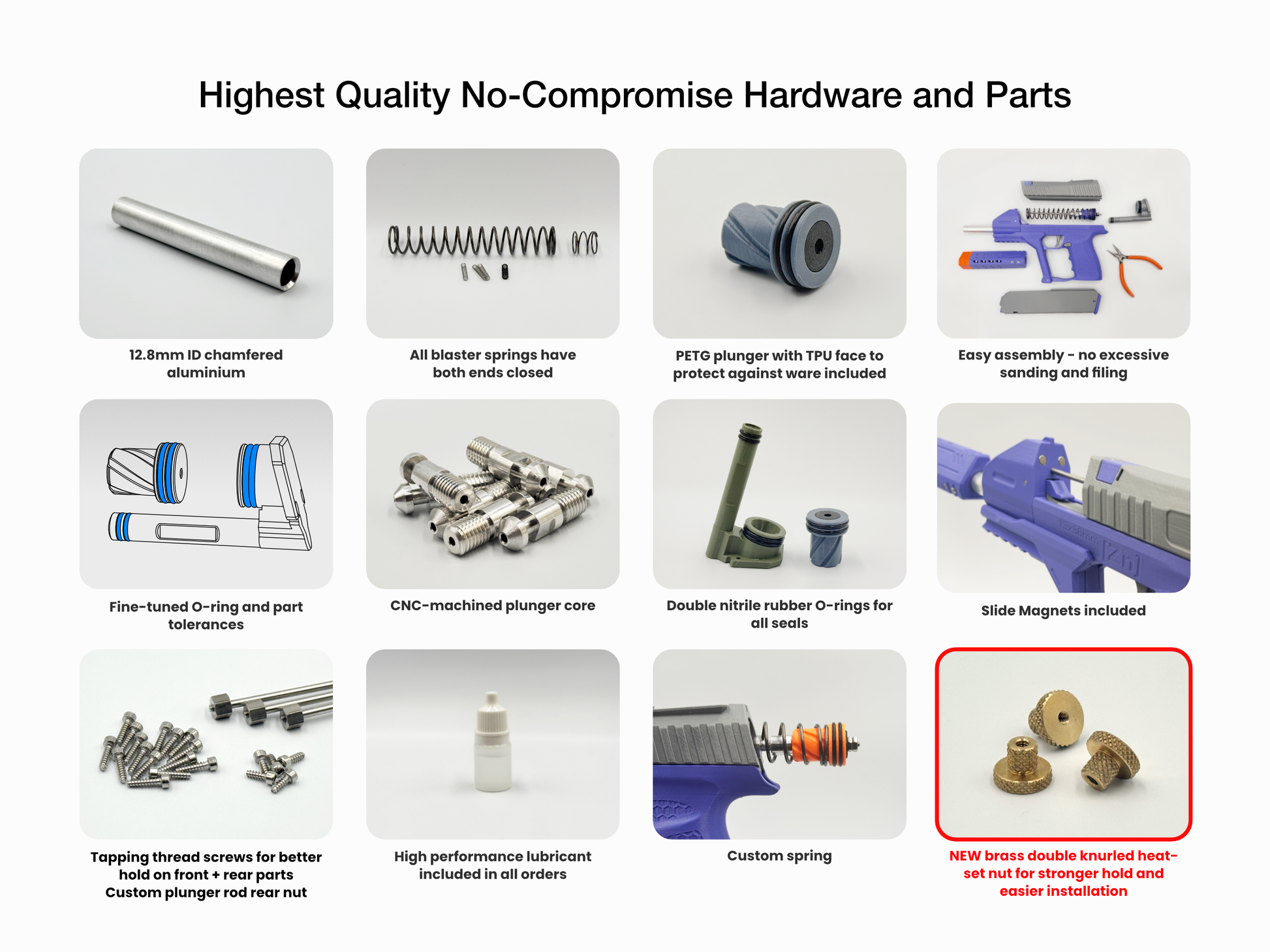

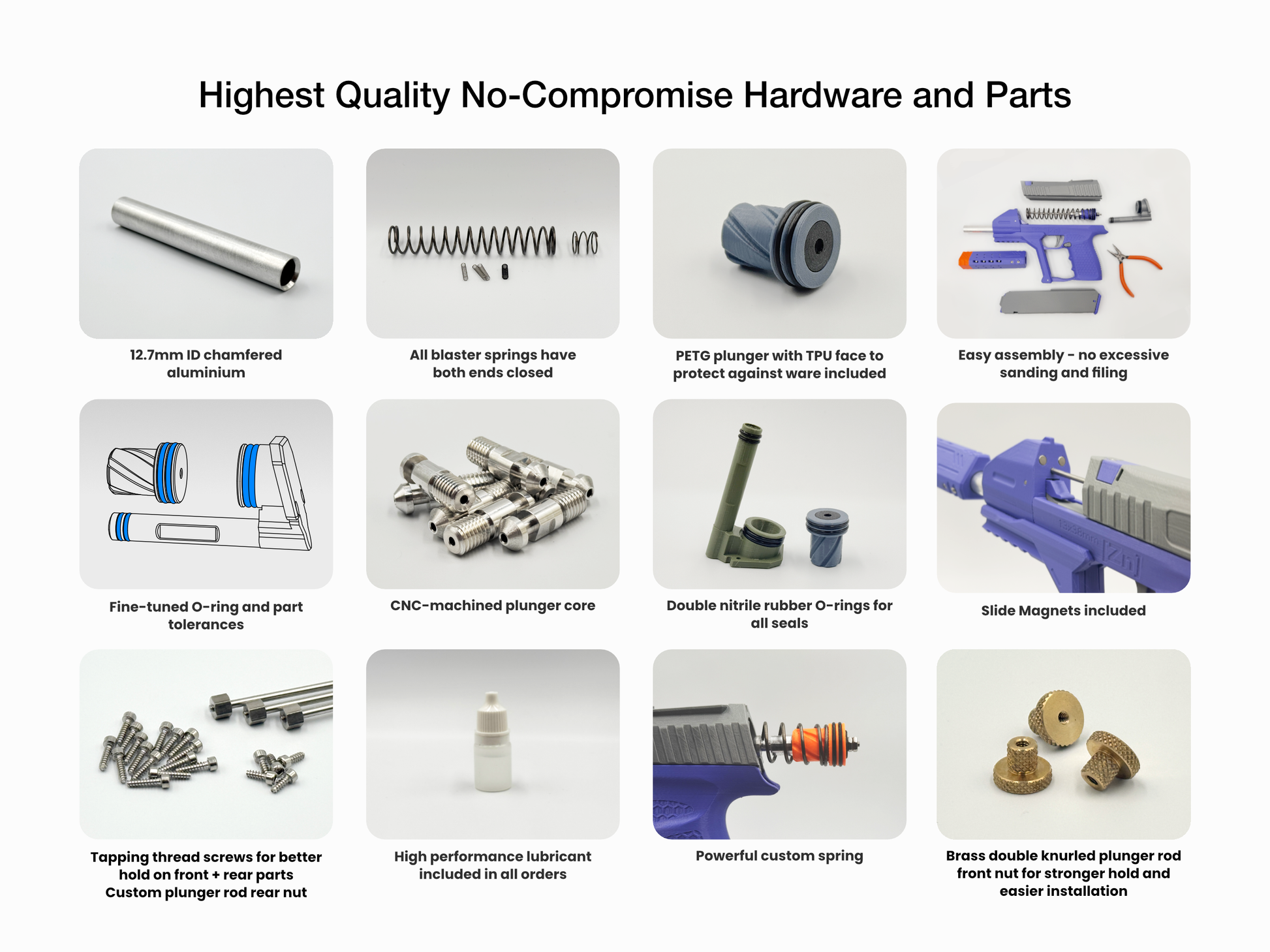

Hardware changes include a tighter-toleranced aluminum plunger tube over the original polycarbonate one, refined closed-end springs for all springs to fix issues of the original Zinc such as the stiff catch and weak mag release, double O-rings on all seals, lubricant oil included, plastic tapping screws replacing machine screws with nuts (caused part splitting or the nuts would turn in place, making removal impossible), and more. Additionally, all printed parts have had their design and/or tolerances modified in the interest of performance, ease of assembly, ergonomics, and aesthetics. See images for further details.

Darts: Darts are not included. This blaster takes half length darts. Worker Gen3+ or Worker Bamboo half-length darts are recommended. They can be purchased in boxes of 200 at an affordable price from various sellers. A quick Google search should find some for sale from a store near you.

Care and safety: Please read the disclaimer warning on the first page of the assembly guide carefully. Print in bright colours and use in responsible locations/settings. Do not leave the blaster outside under sunlight or in a car that may get hot when not in use. Do not leave the blaster primed when not in use. Use responsibly. Do not aim at eyes or face. Eye protection for skirmishing is essential. Not recommended for use by young children.
